Rectified Edges (RC) = Edges that have been machined to obtain a smaller joint width, approximately 2-3mm+.
Un-Rectified Edges = Edges that have not been machined, joint width approximately 4-5mm+.

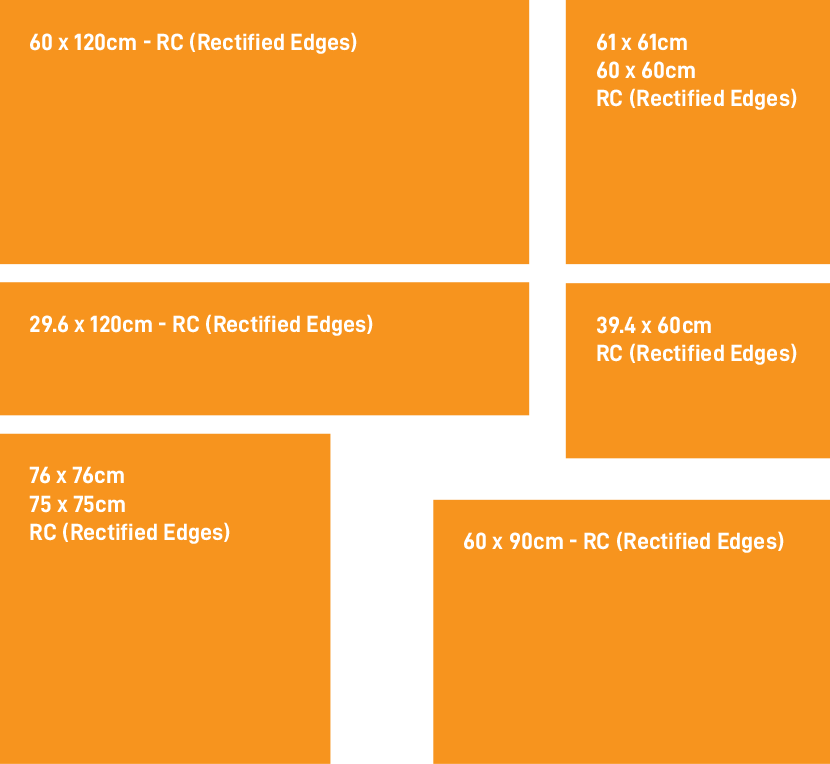

Size
Pieces per Box
M2 per Box
M2 per Pallet
60cm x 120cm (Rectified Edges)
Pieces per Box 1
M2 per Box 0.72
M2 per Pallet 21.6
29cm x 60cm (Rectified Edges)
Pieces per Box 2
M2 per Box 0.7
M2 per Pallet 21.24
76cm x 76cm
Pieces per Box 1
M2 per Box 0.57
M2 per Pallet 24.27
75cm x 75cm (Rectified Edges)
Pieces per Box 1
M2 per Box 0.56
M2 per Pallet 23.6
61cm x 61cm
Pieces per Box 2
M2 per Box 0.74
M2 per Pallet 22.32
60cm x 60cm (Rectified Edges)
Pieces per Box 2
M2 per Box 0.72
M2 per Pallet 21.6
39cm x 60cm
Pieces per Box 3
M2 per Box 0.7
M2 per Pallet 28.36
60cm x 90cm (Rectified Edges)
Pieces per Box 1
M2 per Box 0.54
M2 per Pallet 21.60
Test
Standard
Result
Dimensions & Surface Quality
Standard UNE-EN-ISO 10545-2
Results Acceptable
WATER ABSORPTION
Standard UNE-EN-ISO 10545-3
Results < 0.2%
MODULUS OF RUPTURE
Standard UNE-EN-ISO 10545-4
Results 142 N/mm²
BREAKING STRENGTH
Standard UNE-EN-ISO 10545-4
Results 11050 N
RESISTANCE TO DEEP ABRASION
Standard UNE-EN-ISO 10545-6
Results ≤ 145mm³
LINEAR THERMAL EXPANSION COEFFICIENT
Standard UNE-EN-ISO 10545-8
Results 6,5 (10 -6 ºC -1)
MODULUS OF RUPTURE
Standard UNE-EN 1339
Results U11
BREAKING STRENGTH
Standard UNE-EN 1339
Results T11
RESISTANCE TO THERMAL SHOCK
Standard UNE-EN-ISO 10545-9
Results Resists
MOISTURE EXPANSION
Standard UNE-EN-ISO 10545-10
Results ltet 0,1 (mm/m)
CRAZING RESISTANCE
Standard UNE-EN-ISO 10545-11
Results Resists
FROST RESISTANCE
Standard UNE-EN-ISO 10545-12
Results Resists
CHEMICAL RESISTANCE: acids and low concentration alkalis
Standard UNE-EN-ISO 10545-13
Results GLA
CHEMICAL RESISTANCE: acids and high concentration alkalis
Standard UNE-EN-ISO 10545-13
Results GHA
CHEMICAL RESISTANCE: household products and pool salts
Standard UNE-EN-ISO 10545-13
Results GA
RESISTANCE TO STAINS
Standard UNE-EN-ISO 10545-14
Results clase 5
STATIC CHARGE
Standard EN 12825
Results Centre: KN> 8,0 / Centre side: KN> 5,5 / Diagonal: KN> 8,0
SCRATCH HARDNESS OF SURFACE ACCORDING TO MOHS
Standard UNE 67101
Results 8
CRITICAL SLIP ANGLE (RAMP)
Standard DIN 511130:2010
Results R11
SLIP RESISTANCE (PENDULE)
Standard UNE-EN-V 12633:2003
Results RD 55, clase 3
THICKNESS
Standard
Results 20mm
